VYGQ series 24kV full encapsulation solid insulated vacuum circuit breaker adopts the first full encapsulation structure and the latest solid insulating technology in the world. The embedded pole of VYGQ series are made by special VULCANIZE process to create a cushion between the vacuum interrupter and the epoxy resin, ensuring a high reliability of the embedded poles. The internal structure of embedded pole is isolated from outside environment, not subject to ambient factors such as dust, pollution, moisture and condensation. The embedded poles are free of maintenance. VYGQ series has a strong capacity to adapt to the environment and can run in the adverse conditions.

With high performance, VYGQ series is the first to pass 5000m altitude test in China, which is the highest altitude test for 12kV vacuum circuit breaker at present). VYGQ series has passed a complete set of type tests and meet Class C2-E2-M2 requirements of Chinese National Standard GB1984-2003 and International Standard IEC62271-100, and other relevant standards. It has a full range of ratings and dimensions to meet different demand in industry. It can be integrated into air insulated switchgears (such as KYN28A, KYN96 and KYN61, etc.), universally used in applications such as power plant, substation, petrochemical plants, metallurgical industries, mining, manufacturing industry, airport, subway, seaport and residential areas, etc.

40.5kV Technical Data

No.	Description	Unit	Parameter
1	Rated voltage	kV	40.5
2	Rated short time power frequency withstand voltage (1min)		95
3	Rated lightning impulse withstand voltage (peak)		185
4	Rated frequency	Hz	50/60
5	Rated current	A	630 1250 1600	630 1250 1600 2000 2500	1250 1600 2000 2500
6	Rated short circuit breaking current	kA	20	25	31.5
7	Rated short time withstand current		20	25	31.5
8	Rated peak withstand current		50	63	80
9	Rated short circuit making current (peak)		50	63	80
10	Rated short circuit duration time	s	4
11	Mechanical endurance	Op.	10000

1. The first full encapsulation structure in the world

2. Excellent performance

3. Advanced solid insulating technology

4. Complete type tests

5. Unique spring actuator

6. Advanced manufacture process, accurate test equipment, stringent quality policy

7. Chinese national standards as well as international standards

8. Patented vacuum Interrupter with overall small resistance

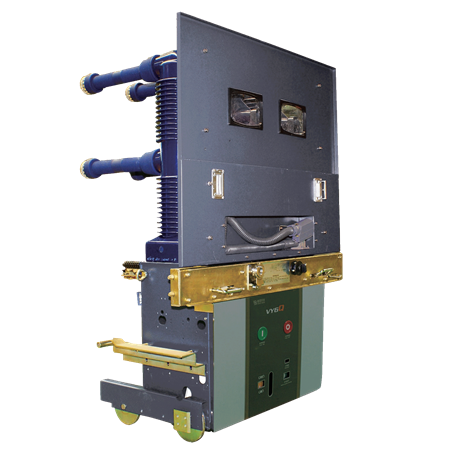

VYGQ series 40.5kV Withdrawable Version

VYGQ series 40.5kV Fixed Version
